Why are backup rings used with O-rings in high-pressure applications?

In the demanding landscape of modern industrial engineering, the integrity of a sealing system can determine the success or failure of an entire operation. High pressure environments, particularly those exceeding 1,500 PSI, place immense stress on standard sealing elements. While O-rings are highly effective for basic sealing, they often require the support of back up rings to maintain performance and prevent catastrophic failure in extreme conditions.

The Challenge of Seal Extrusion in High-Pressure Applications

The primary reason for incorporating Backup Rings for High-Pressure Applications is to combat seal extrusion. Extrusion occurs when pressurized fluid forces the soft material of an O-ring into the clearance gap between mating hardware surfaces. Under high loads, the elastomer deforms plastically and begins to “flow” into this gap, where it can be pinched, sheared or permanently damaged—a phenomenon often described as “nibbling”.

This process leads to a rapid loss of sealing capability and can cause total system failure if left unaddressed. Back up rings provide the critical mechanical support needed to prevent this failure mode, ensuring reliable operation even under the most severe pressure conditions.

What Are Backup Rings and Why Are They Essential?

A Backup ring seal is a rigid, annular component designed to be installed alongside a primary seal, such as an O-ring or X-ring. These components are not seals themselves but serve as structural supports that close off the extrusion gap. Back up rings are essential because they provide a sturdy barrier that keeps the primary seal in its intended position and shape, even when pressure spikes unexpectedly.

By reinforcing the sealing element, back up rings for O rings allow engineers to specify softer, more chemically compatible elastomers that might otherwise be too prone to extrusion. This flexibility in material selection is particularly valuable in applications where chemical resistance and temperature extremes are equally critical.

Features and Common Applications of Back Up Rings

Back Up Rings offer several critical features that enhance the durability of hydraulic and pneumatic systems:

• Extrusion Resistance: They prevent the primary seal from deforming into clearance gaps, even at pressures exceeding 10,000 PSI.
• Extended Seal Life: By reducing wear and preventing nibbling, back up rings prolong the service life of seals and significantly decrease maintenance intervals.
• Enhanced Stability: They improve overall system reliability by maintaining seal integrity under fluctuating pressures and dynamic cycling.

These components are indispensable across various sectors, including mobile construction equipment hydraulics, oil and gas drilling valves, aerospace actuation systems and high-pressure injection molding machinery.

Specialized Backup Ring Materials

The effectiveness of a backup ring is largely dependent on its material composition, with PTFE backup rings and PEEK backup rings being the most widely specified:

PTFE Backup Rings: Made from polytetrafluoroethylene, these rings are prized for their ultra-low friction and exceptional chemical resistance. PTFE backup rings withstand nearly all industrial chemicals from hydrochloric acid to sodium hydroxide without degradation, excelling in dynamic applications and harsh environments where traditional plastic backup rings would fail.

PEEK Backup Rings: For extreme environments, PEEK (polyether ether ketone) provides superior mechanical strength and thermal stability up to 250°C. PEEK backup rings resist extrusion in unlubricated, high-heat applications while maintaining tight dimensional stability.

Types of Backup Rings

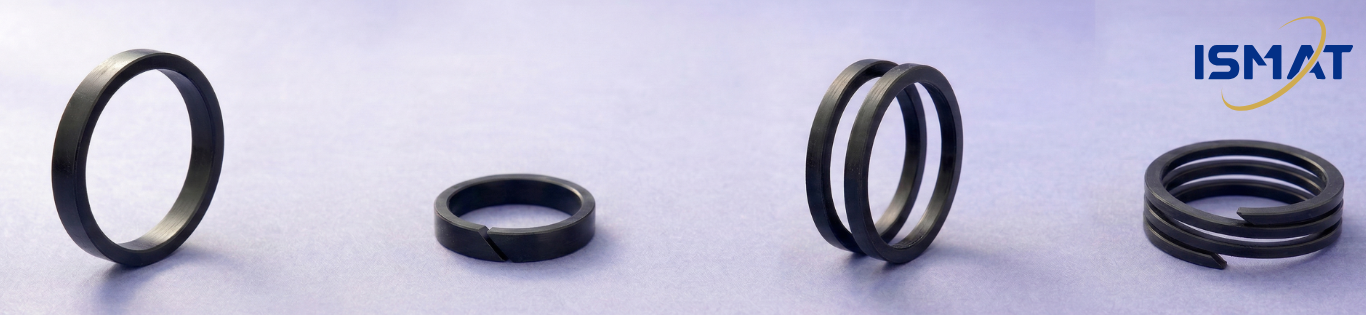

Depending on installation requirements, pressure levels and groove geometry, engineers can choose from three primary back up rings for O rings designs:

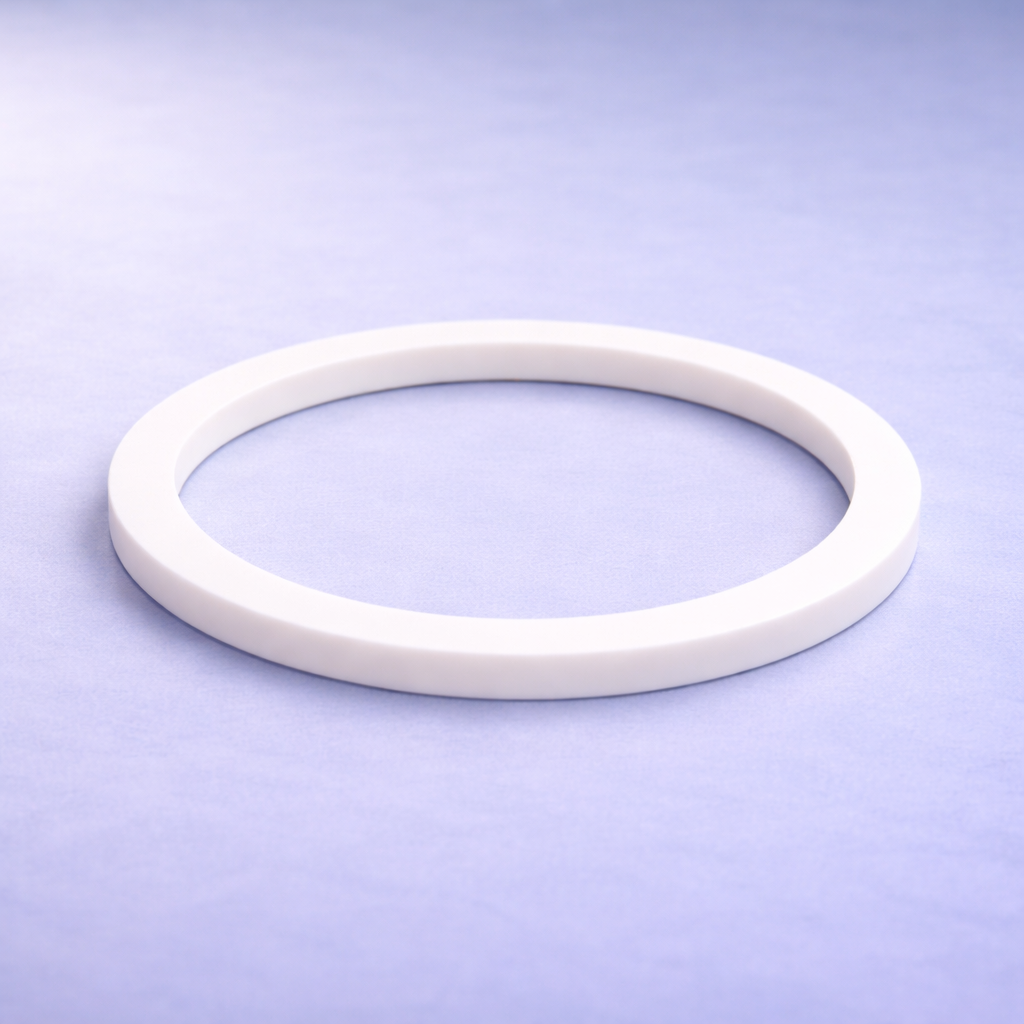

Solid PTFE Backup Rings:

These provide the most robust and continuous support, offering the highest level of anti-extrusion protection for pressures above 5,000 PSI. However, they can be challenging to install in closed glands as they may require stretching or specialized tooling.

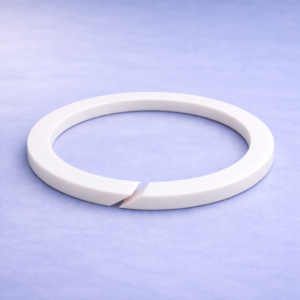

Split (Scarf Cut) PTFE Backup Rings:

This is the most common PTFE backup ring design in modern hydraulic systems. The precision angled “scarf” cut allows the ring to be opened and fitted over a shaft or into a housing easily, making them ideal for maintenance and retrofitting operations.

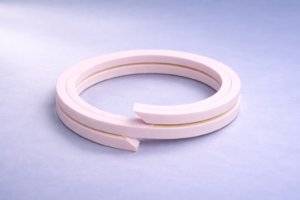

Spiral PTFE Backup Rings:

Constructed from a continuous coil of PTFE, these rings offer excellent flexibility and uniform pressure distribution across the seal interface. While easier to install than solid rings, spiral PTFE backup rings are less common today due to higher manufacturing costs relative to their extrusion resistance performance.

Industry-Specific Applications

Back up rings for valves: In the oil and gas and process industries, backup rings for high-pressure applications are vital for valve stems and seats where aggressive chemicals, extreme temperatures and cyclic loading can rapidly degrade standard seals.

Backup Rings for Hydraulic Applications: These are standard in heavy-duty hydraulic cylinders and pumps, where backup rings support primary seals on the low-pressure side of piston or rod assemblies to manage pressures that often exceed 3,000 PSI and frequent pressure reversals.
