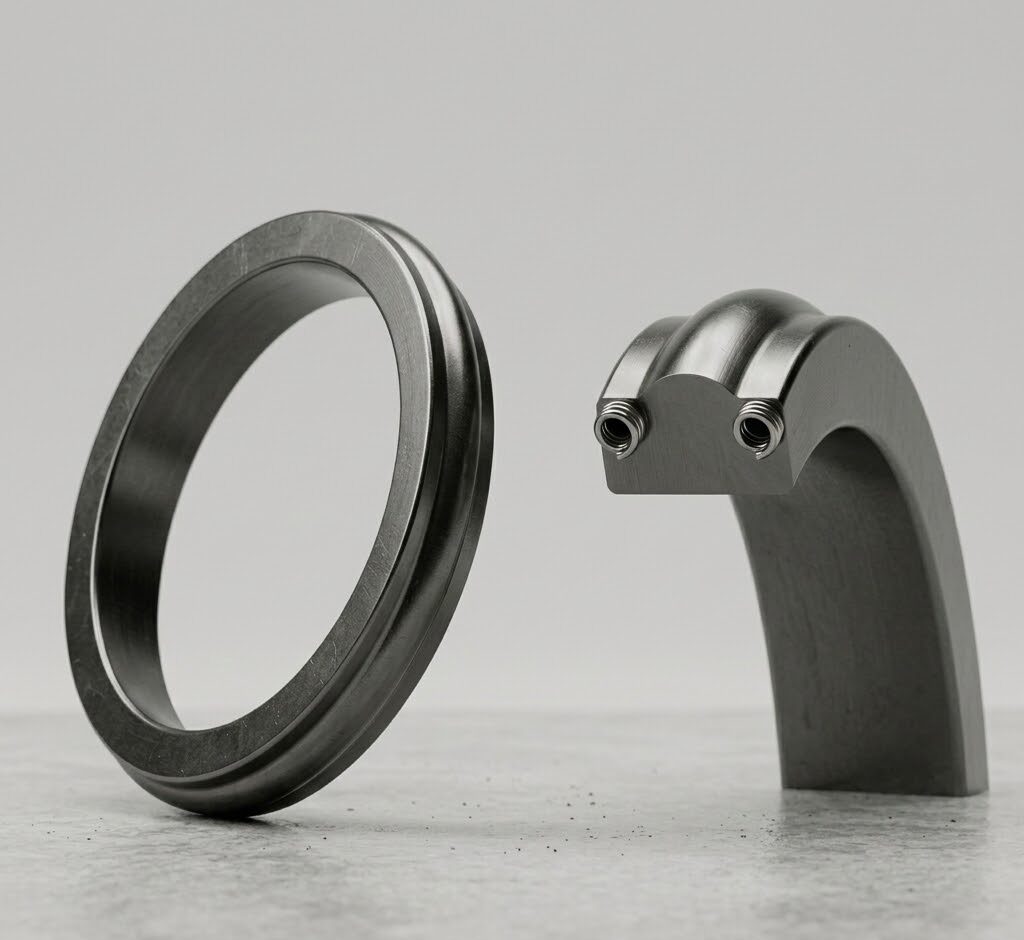

What is an S seal?
S-Seals are advanced, spring-energized one-piece seals designed for the most demanding industrial applications, particularly in oil & gas, energy systems and high-pressure hydraulics. Unlike traditional O-rings (which require backup rings) or multi-piece T-seals, an S-Seal integrates a metal garter spring into a uniquely shaped elastomeric element. This coiled spring embeds directly in the “S”-shaped rubber cross-section, continuously pushing the sealing lips against the gland walls to enhance force, prevent extrusion under extreme pressures and ensure long-term performance with minimal maintenance.
Why Choose S-Seals?
In mission-critical High Pressure High Temperature (HPHT) operations, reliability defines success. S-Seals deliver it by sustaining 15,000 psi pressures and 260°C temperatures across extrusion gaps up to 0.125″ without gland overfill—far surpassing traditional seal limitations. Their one-piece design installs in seconds by simply stretching into any gland (standard or custom, even large diameters), eliminating multi-part errors, damage or downtime. Customizable with elastomers like NBR, HNBR, FKM, FEPM, FFKM or EPDM for your specific media and environment, they ensure extended service life and minimal maintenance, proven to cut operational costs in oil & gas wellheads, BOPs, subsea systems, hydraulics, valves and compressors.
Basic Design Elements of S-Seals

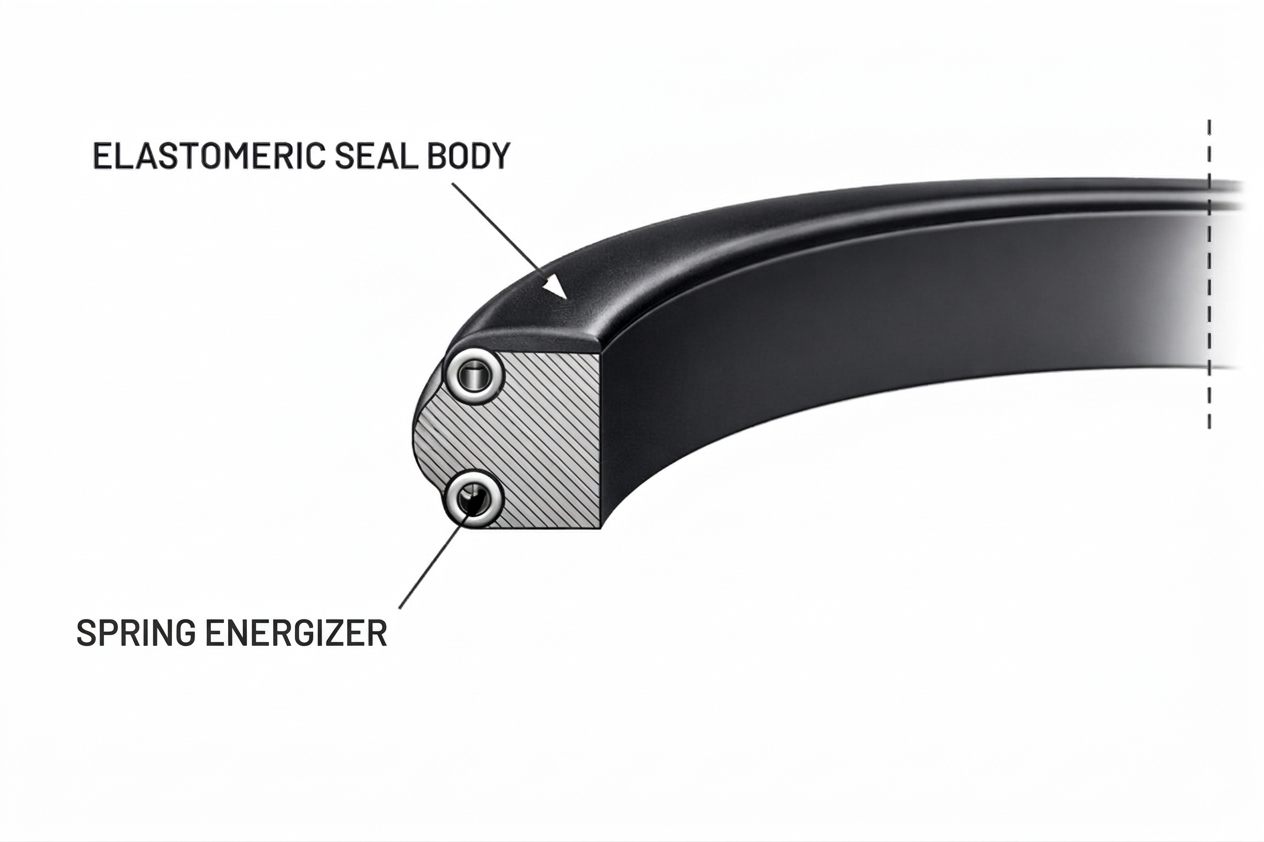

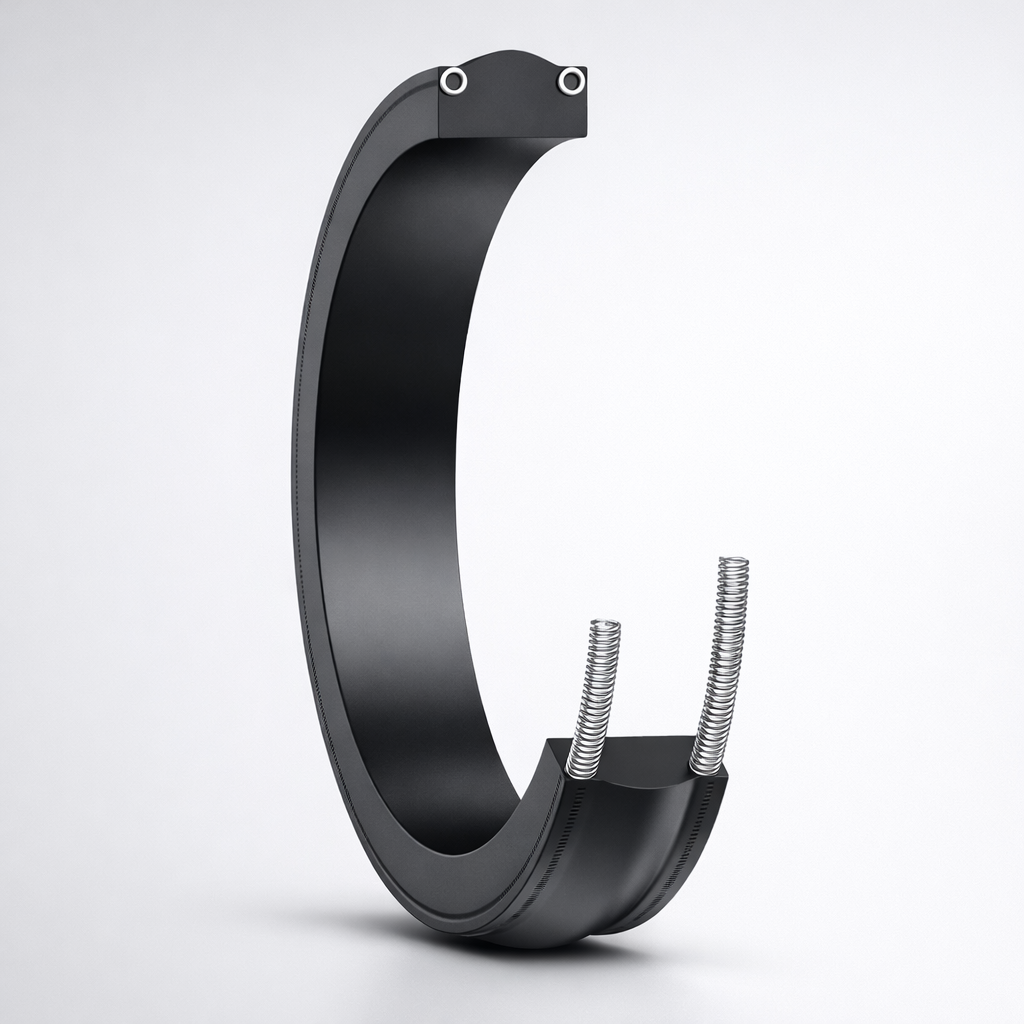

S-Seals feature a durable elastomeric ring with two precision-embedded circular garter springs made from stainless steel (SS), strategically positioned along the outer sealing edges to align perfectly with groove corners. These SS garter springs serve as integrated stiffeners and internal backups, dramatically enhancing extrusion resistance under extreme pressures while imparting structural rigidity to prevent twisting failures.
Core Components
Garter Springs: Stainless steel (SS) construction ensures corrosion resistance and reliable energization, continuously reinforcing the seal edges without compromising flexibility.
Elastomeric Body: Precision-molded from application-specific compounds including NBR, HNBR, FKM, FEPM, FFKM or EPDM, selected to optimize performance across diverse temperatures, pressures, dynamic motions and aggressive media.
This synergistic design maximizes seal integrity and longevity by combining the elastomer’s resilience with the springs unyielding support, tailored precisely for demanding operational environments.
Elastomer Materials - S Seals
| Trade Name | Material | Temperature Range (°C) | Features |
|---|---|---|---|
| Vertex FC | Fluoroelastomers (FKMs) | -20°C to +230°C | - Wide temperature range. - Outstanding resistance to oils, fuels and synthetic lubricants. - Superior chemical compatibility vs. standard NBR or EPDM. - Excellent compression set for dynamic sealing. |
| Vertex F | Perfluoroelastomer (FFKM) | -40°C to +315°C | - Ultimate chemical resistance beyond FKM. - Extreme temperature capability to 315°C. - Superior resistance to hydrocarbons and aromatics. - Ultra-low compression set at elevated temperatures. - Premium choice for mission-critical sealing. |
| Vertex A | Tetrafluoroethylene propylene (FEPM or AFLAS®) | -3°C to +230°C | - Exceptional steam and hot water resistance. - Superior chemical resistance vs. standard FKM. - Highly resistant to acids, bases and amines. - FDA compliant for food/pharma applications. |
| Vertex FS | Fluorosilicone rubber (FSL) | -70°C to +200°C | - Wide temperature range -70°C to +200°C. - Superior fuel and oil resistance with silicone stability. - Excellent resistance to aviation fluids and hydraulic oils. - Low outgassing for aerospace vacuum applications. - Exclusively designed for aircraft seals and high-altitude service. |
| Vertex H | HNBRs (Hydrogenated Nitrile Butadiene Rubber) | -52°C to +160° | - Outstanding oil and fuel resistance, surpassing standard NBR. - Chemically stable against acids, bases and polar solvents. - Excellent resistance to hydrocarbons, fuels and additives. - Hydrogenated for superior ozone, weather and aging resistance. - High mechanical strength with low compression set. |
| Cerulean N | Nitrile Butadiene Rubber (NBR) | -55°C to +135°C | - Superior oil, fuel and hydrocarbon resistance. - Excellent abrasion and tear strength. - Cost-effective for mineral oil sealing. - Fair flexibility and compression set resistance. |
| Cerulean C | Chloroprene Rubbers (CR) | -40°C to +100°C | - Exceptional mechanical strength and tear resistance. - Superior ozone, UV and weather resistance. - Good flame retardancy and moderate oil resistance. - Balanced temperature range of -40°C to +100°C. - Ideal for industrial seals, gaskets and belts. |
| Cerulean S | Silicone rubber | -80°C to +200°C | - Exceptional flexibility and high elongation properties. - Excellent resistance to ozone, UV, weathering and chemicals. - Low toxicity, physiologically inert and weather-stable. - Ideal for seals, gaskets, medical devices and food applications. |
| Cerulean EP | EPDM (Ethylene Propylene Diene Terpolymer) | -55°C to +150°C | - Outstanding ozone, UV and weather resistance. - Excellent temperature range of -50°C to +150°C. - Superior resistance to water, steam and polar chemicals. - Good mechanical strength and low compression set. |
| Cerulean SB | SBRs (Styrene-Butadiene Rubber) | -40°C to +100°C | - Excellent abrasion resistance and high tensile strength. - Good flexibility and resilience at low temperatures. - Cost-effective with fair aging stability. |
ENERGIZER MATERIALS – S SEALS
| Spring Type | Stainless Steel Grades |
|---|---|
| Garter Spring | 301, 302, 304, 316, 17-7PH |
How S-Seals Operate
S-Seals function through continuous spring energization. The stainless steel (SS) garter springs, embedded along the outer sealing edges, exert constant radial force on the elastomeric lips, pressing them firmly against groove corners to maintain a dynamic seal under all conditions.
Operational Mechanism
- Spring Activation: SS garter springs stiffen the elastomer and act as internal backups, countering extrusion forces even at 15,000 psi by filling potential gaps up to 0.125″.
- Lip Sealing: “S”-shaped profile positions energized lips to block fluid/pressure migration bidirectionally, adapting to groove geometry without twisting.
- Pressure Response: Higher system pressure augments spring force (pressure-assisted sealing), enhancing contact while resisting blowout or cold flow.
This integrated action ensures zero leakage, structural stability and self-correcting performance across HPHT cycles in wellheads, BOPs and valves.
Need Mission-Critical High-Pressure, High-Temperature Sealing Solutions?
Contact ISMAT for immediate technical consultation, application-specific elastomer compounding and production-ready S-Seals optimized for your most demanding oil & gas, subsea, hydraulic and heavy industrial sealing requirements.
Key Advantages of ISMAT S-Seals
ISMAT S-Seals incorporate proprietary engineering optimizations that provide superior operational performance over standard industry alternatives.
- Precision Spring Geometry: Dual stainless steel garter springs with optimized placement ensure maximum load distribution and exceptional fatigue endurance.
- Advanced Elastomer Formulations: In-house compounded materials deliver superior hot hardness retention and thermal stability in HPHT service.
- Micro-Textured Sealing Interface: Enhanced surface characteristics maintain uniform contact pressure through thermal expansion cycles and pressure fluctuations.
- Effortless Stretch-Fit Installation: Specialized geometry enables gland installation without torque tools or mechanical assistance.
- Superior Lifecycle Economics: Extended mean time between failures in downhole conditions compared to traditional multi-piece seal assemblies.
Designed for maximum reliability in blowout preventers, subsea connectors and wellhead equipment where operational continuity is essential.
Why Choose ISMAT for S-Seals
ISMAT delivers unmatched value as your S-Seal partner with fully integrated in-house elastomer compounding using application-matched materials (NBR, HNBR, FKM, FEPM, FFKM, EPDM) to meet precise media compatibility, temperature and pressure specifications. Our precision manufacturing follows strict API 6A and ISO 9001 standards, ensuring zero-defect production, complete traceability and consistent performance from prototype through full-scale deployment. We accelerate your time-to-market through rapid prototyping backed by finite element analysis (FEA) for custom gland geometries and operating conditions. As your single-source provider, ISMAT eliminates multi-vendor complexity, reduces inventory carrying costs, provides comprehensive post-installation support and minimizes unplanned outages—maximizing asset uptime and total return on investment for your most critical sealing applications.
Applications of S- Seals
Trusted by Industry Leaders
Get In Touch
Contact ISMAT for S-Seals
ISMAT engineers precision S-Seals with stainless steel garter springs for your most critical HPHT applications.
Request technical consultation, download elastomer specifications (NBR, HNBR, FKM, FEPM, FFKM, EPDM) or submit gland dimensions for custom design, rapid prototyping and production-scale manufacturing that guarantees maximum operational reliability and minimal unplanned downtime.
FAQs
S-Seals integrate stainless steel garter springs directly into the elastomeric body, providing constant energization and extrusion resistance up to 0.125″ gaps—eliminating the need for separate backups or multipiece assemblies prone to installation errors.
ISMAT S-Seals handle 15,000 psi pressures and 260°C temperatures in HPHT conditions without gland overfill, using application-matched compounds like HNBR, FKM, FEPM, FFKM or EPDM.
Elastomeric bodies use NBR, HNBR, FKM, FEPM, FFKM or EPDM, paired with corrosion-resistant stainless steel (SS) garter springs for optimal media compatibility, thermal stability and chemical resistance.
Yes, ISMAT provides full customization for gland dimensions (including large diameters), compound selection and FEA-validated prototyping to match your specific operating conditions and equipment geometry.
